Gaius Iulius Hyginus

(Caspar Vopel)

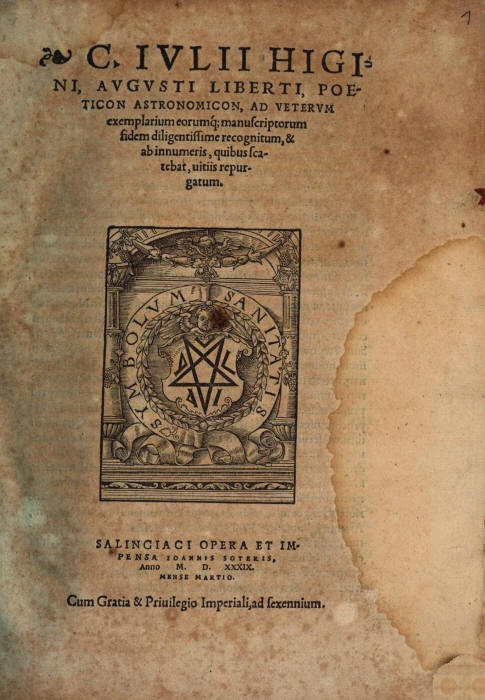

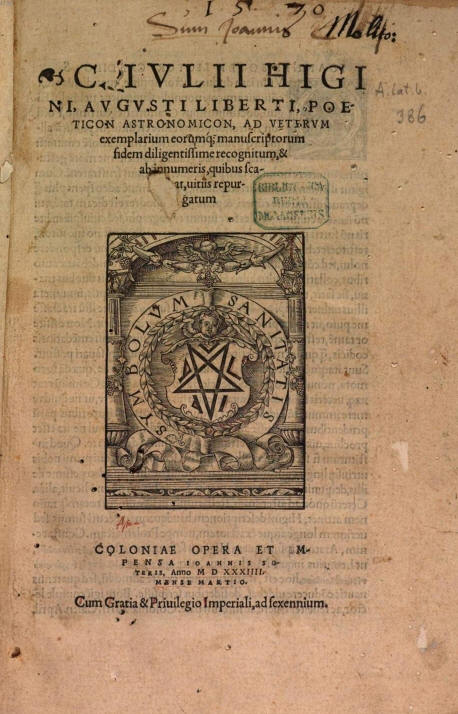

C. Ivlii Higini, Avgvsti Liberti, Poeticon Astronomicon : Ad Vetervm exemplarium eorumq[ue] manuscriptorum fidem diligentissime recognitum, & ab innumeris, quibus scatebat, uitiis repurgatum, Coloniae 1534









Gaius Iulius Hyginus





C. Ivlii Higini, Avgvsti Liberti, Poeticon Astronomicon : Ad Vetervm exemplarium eorumq[ue] manuscriptorum fidem diligentissime recognitum, & ab innumeris, quibus scatebat, uitiis repurgatum, Coloniae 1534



https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00005.html









Caspar Vopel è l’autore delle illustrazioni delle costellazioni che corredano l’edizione  del Poeticon Astronomicon pubblicata a Colonia nel 1534 da Johannes Soter. Lo stile utilizzato da Vopel ha per riferimento le costellazioni delle mappe del Dürer del 1515 e per descriverle ricorro ai seguenti articoli di Elly Dekker e di Astronomie in Nürnberg.











ELLY DEKKER



Caspar Vopel's Ventures in Sixteenth-Century Celestial Cartography

Les essais de Caspar Vopel en cartographie céleste au XVIe siècle

Caspar Vopels Vorstoß in die Kartographie des Himmels im 16. Jahrhundert

Las empresas de Caspar Vopel en la cartografía celeste del siglo XVI

http://www.atlascoelestis.com/Vopel%202010%20base.htm



Per cortesia di

Imago Mundi

Volume 62Issue 2, 2010

Taylor & Francis Online



1534: A Cycle of Constellation Images



Vopel's next undertaking in celestial cartography was the series of forty woodcut constellation images made for the 1534 edition of the Poeticon Astronomicon, published by the Cologne humanist and printer Johannes Soter. (22)

This astronomical treatise on the rudiments of astronomy is attributed to the librarian of the Roman emperor Augustus, C. Iulius Hyginus (first century bc). Vopel's involvement in Soter's edition is expressed in an address to the reader printed at the end of the book. He also included a reference to his woodcut illustrations of Hyginus's Poeticon Astronomicon in a legend on his world map. (23)

Cycles of individual constellation images are seen in many medieval manuscripts, where they illustrate so-called descriptive star catalogues, that is, written lists of the locations of stars within constellation images. The oldest extant copies of such lists date from the beginning of the ninth century. Some descriptive star catalogues are part of the scholia of Latin translations of the Phaenomena, the earliest surviving Greek description of the celestial sky by Aratus of Soli (c. 310–240/239 bc); others occur in treatises of the ‘computus’. (24)

Book III of Hyginus's Poeticon Astronomicon contains such a descriptive star catalogue.

The most common cycle of constellation images printed in the Renaissance is the one illustrating the editio princeps of the Latin translation of Aratus's poem by Germanus Iulius Caesar (15 bc–19 ad). This was published in Bologna in 1474. The images stem from a medieval tradition connected with Michael Scot (fl. c.1235), court astrologer to Emperor Frederick II. (25)

The woodcuts of the Scot illustrations were also used in the 1482 and 1485 editions of Hyginus's Poeticon Astronomicon, published by Erhard Ratdolt in Venice , and in many other astronomical works printed during the Renaissance. (26)

In contrast, the Cologne edition printed by Soter in 1534 did not follow this trend but used instead Caspar Vopel's newly designed woodcut images.

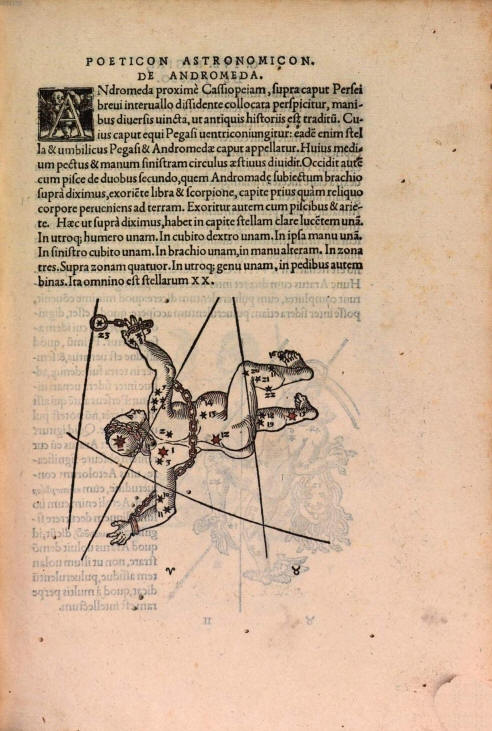

The images of Andromeda in the editions by Ratdolt and Soter of respectively 1482 and 1534 are shown in Figure 2 The 1482 image depicts Andromeda as a male/female with outstretched arms tied to the branches of trees. (27)

The stars plotted in the constellation are in keeping with Hyginus's descriptive star catalogue. Vopel's image on the other hand follows Dürer's design of a naked woman in chains. He placed the constellation in relation to sections of a number of celestial circles: great circles through the ecliptic poles separating the signs of the zodiac, the Tropic of Cancer and the equinoctial colure. In the absence of declination scales it is not possible to decide what sort of projection Vopel used, but it certainly was not stereographic. The great circles through the ecliptic poles in the woodcuts in Soter's Poeticon Astronomicon seem to represent the boundaries of globe gores and clearly anticipate Vopel's printed globe. It is, therefore, not surprising that the stars in Vopel's figure of Andromeda do not follow Hyginus's descriptive star catalogue, but are based on Ptolemy's positions and magnitudes of the stars and are numbered according to their order in his star catalogue. (28)






View larger version(183K)

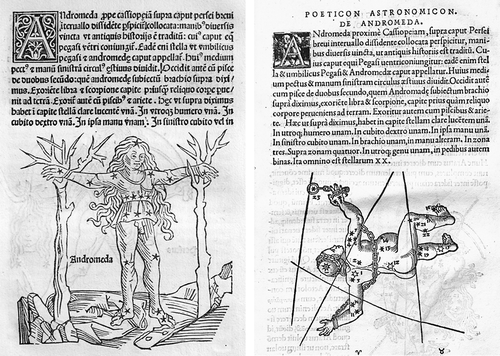

Fig. 2. Andromeda from two editions of Hyginus, Poeticon Astronomicon. Left, the edition by Erhard Ratdolt, printed in Venice in 1482, with woodcut illustrations based on a medieval manuscript tradition connected with Michael Scot (fl. c.1235), court astrologer to Emperor Frederick II. Right, Johannes Soter's edition, printed in Cologne in 1534, with woodcut illustrations by Caspar Vopel. (Reproduced with permission from the History of Science Collections, University of Oklahoma Libraries , Norman , and from the Bayerische Staatsbibliothek München, respectively.)








The principles underlying Vopel's woodcut of Andromeda hold for the other constellations. A few, however, diverge from the general pattern. For example, the iconography of Boötes deviates from Dürer's design in that Boötes now holds a sickle in his raised left hand, a detail that Vopel borrowed from the Scot illustration, where Boötes is portrayed as a farmer (Fig. 3).




View larger version(182K)

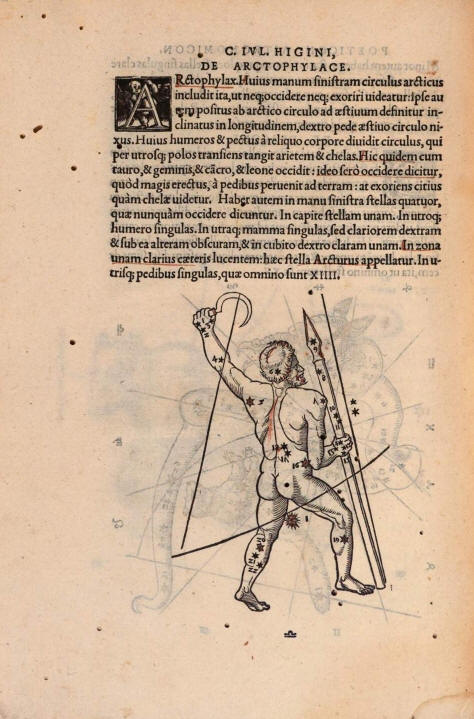

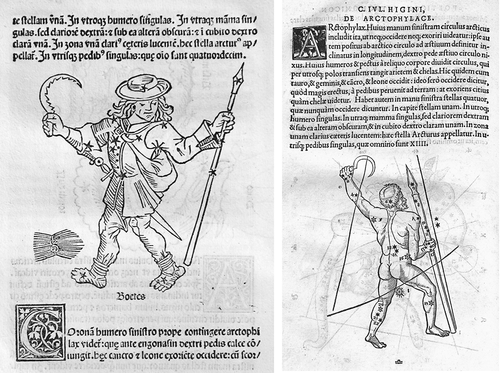

Fig. 3. Boötes from two editions of Hyginus, Poeticon Astronomicon. Woodcuts. Left, the Radolt edition of 1482, portraying Boötes as a farmer. Right, the Soter edition of 1534, where Boötes holds a sickle in his raised left hand, a detail borrowed from the illustration in the Radolt edition. (Reproduced with permission from the History of Science Collections, University of Oklahoma Libraries , Norman , and the Bayerische Staatsbibliothek München, respectively.)






In some constellations unformed stars or stars belonging to a neighbouring constellation are found. For example, the image of Corona Borealis contains some stars from Serpens (Ser 1–3, 5–6), and included in the outline of Taurus are two non-Ptolemaic stars (numbered 34 and 35 and placed after the Ptolemaic Pleiades stars 30–33) and the Greek names of the Pleiades and the Hyades (Fig. 4). Hyginus discussed the Pleiades in a separate entry in Book II.21, declaring that only six of its seven stars were discernable. This could explain why Vopel increased the four Ptolemaic Pleiades stars to six. The one star name shown in Vopel's drawings, CANOPVS in Navis, is also discussed by Hyginus, although not in his entries on Navis (Books II.37 and III.36) but in the entry on Eridanus (Book II.32). All this suggests that the images were taken from something much larger, such as a set of globe gores. The rough scale (in units of 10°) for longitudes that accompanies the drawings of the zodiacal constellations is consistent with this thesis.




View larger version(153K)

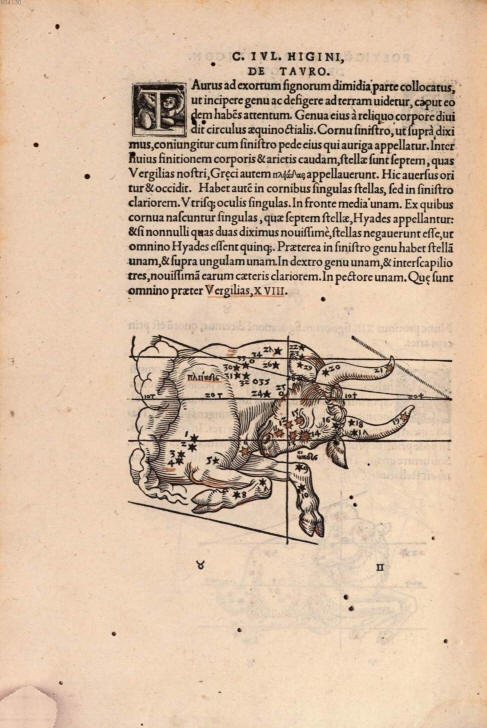

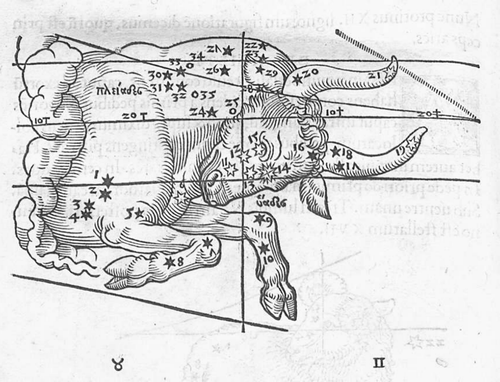

Fig. 4. Taurus from Soter's 1534 edition of Hyginus, Poeticon Astronomicon, with the Greek names of the Pleiades (numbers 30–33) and the Hyades. Woodcut. Among the Pleiades are two non-Ptolemaic stars (numbers 34 and 35). (Reproduced with permission from the Bayerische Staatsbibliothek München.)








Since the Ptolemaic stellar configurations of Vopel's constellation cycle are not in line with Hyginus's descriptive star catalogue, the series must have confused readers trying to connect the text with the images. This did not, however, prevent the reproduction of either the whole cycle or part of it in a number of astronomical works printed later in the sixteenth century. (29)

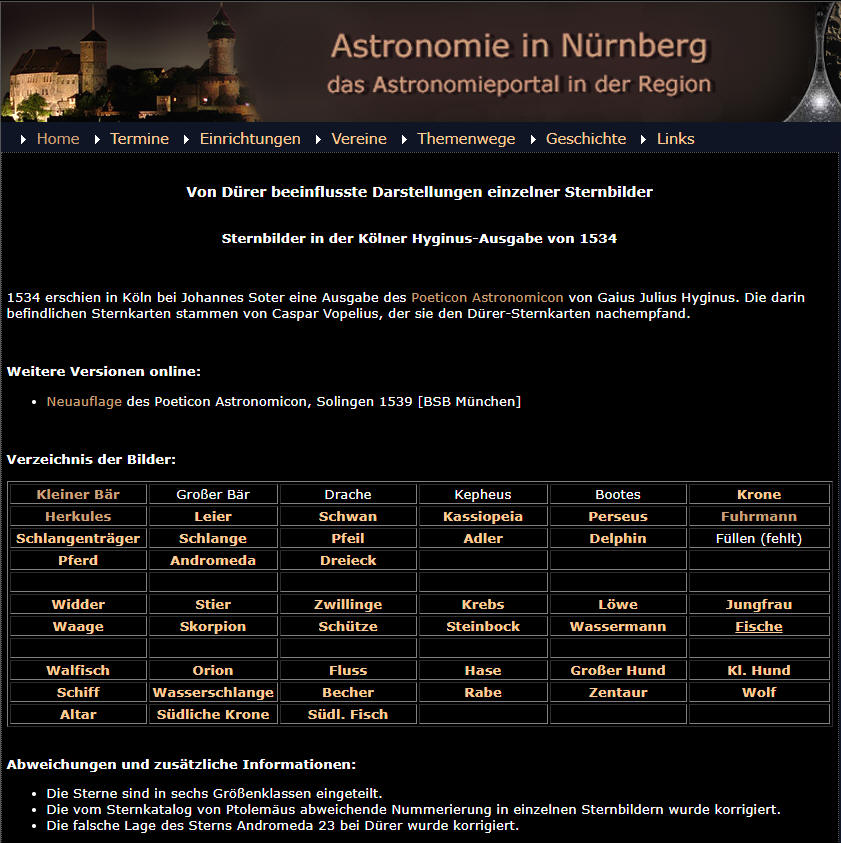

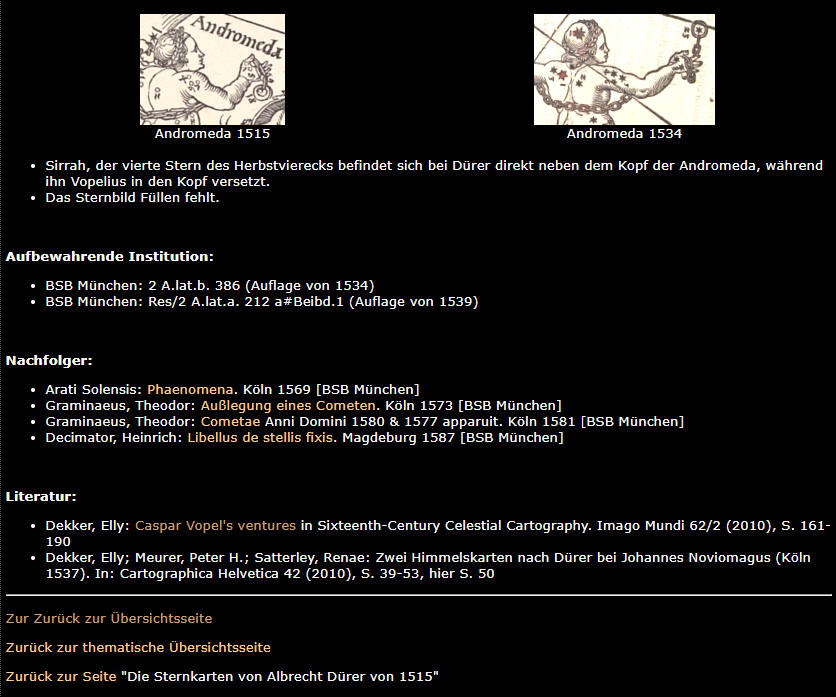

https://www.astronomie-nuernberg.de/index.php?category=duerer&page=hyginus-1534

https://www.astronomie-nuernberg.de/index.php?category=duerer&page=nachfolger

https://www.astronomie-nuernberg.de/index.php?category=duerer&page=sternkarten









l

Per cortesia di

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00005.html

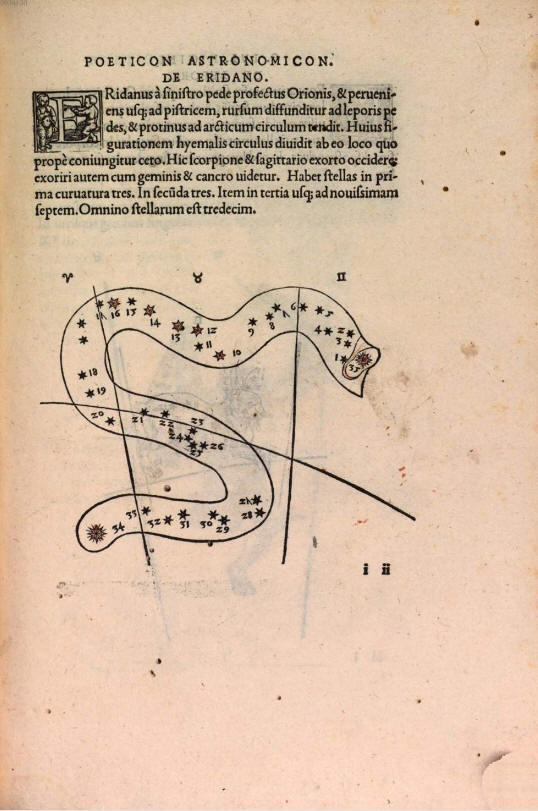

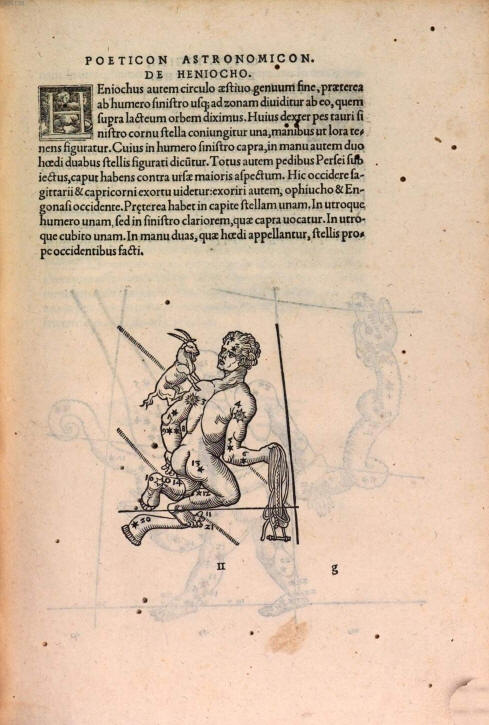

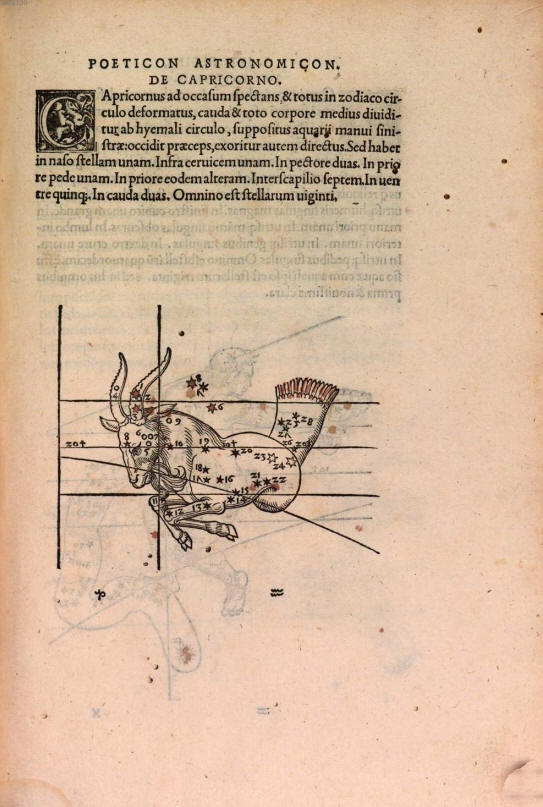

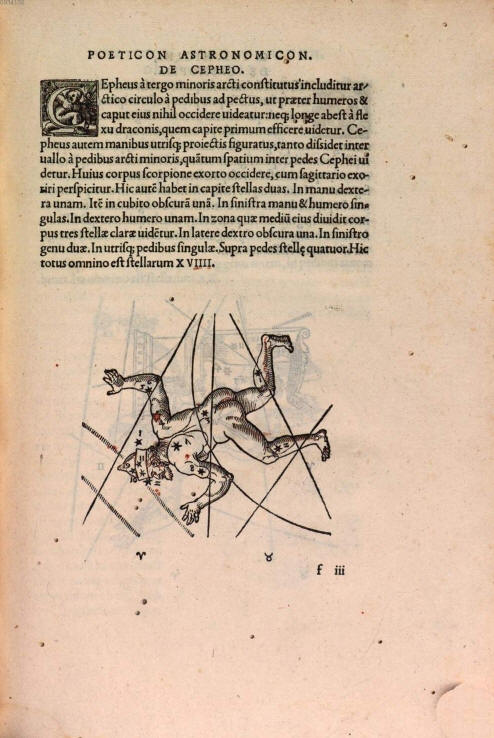

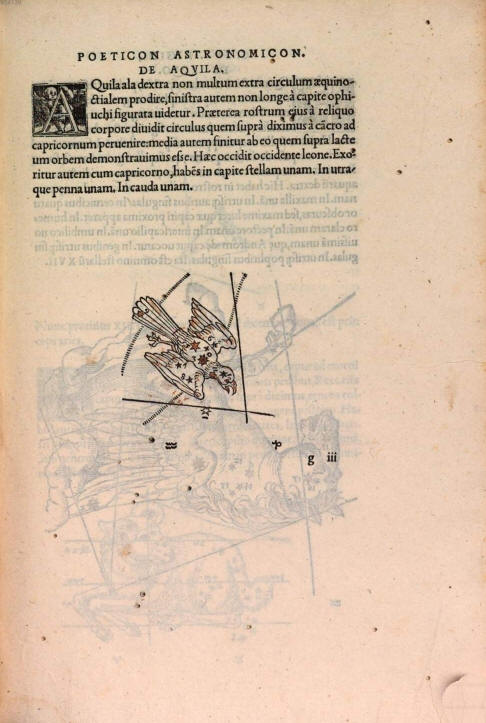

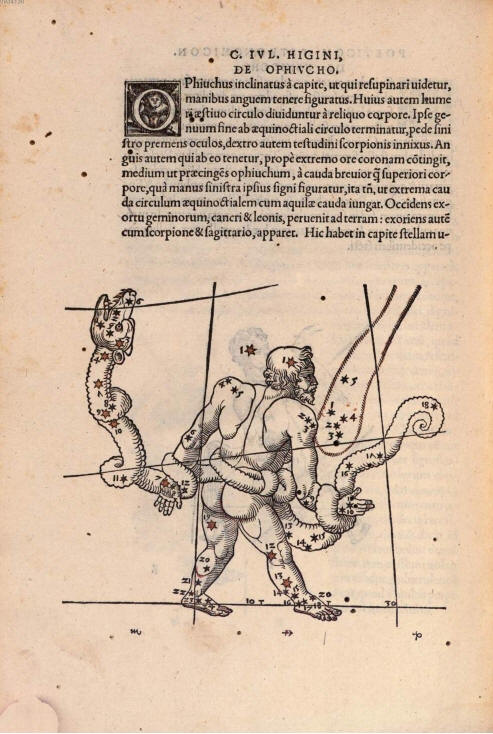

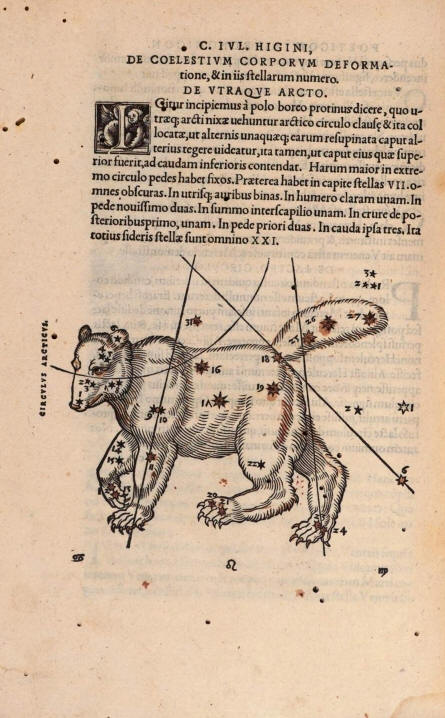

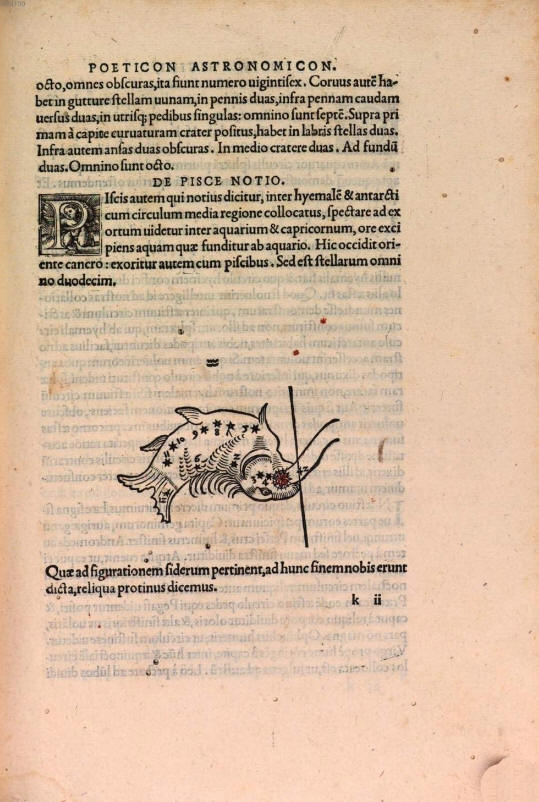

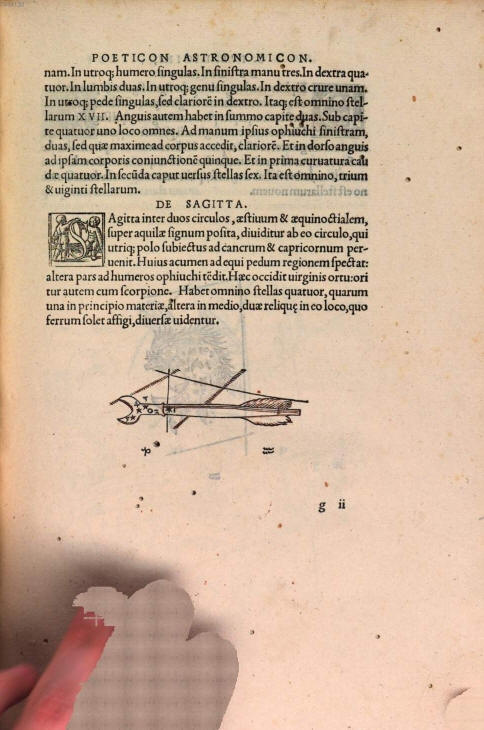

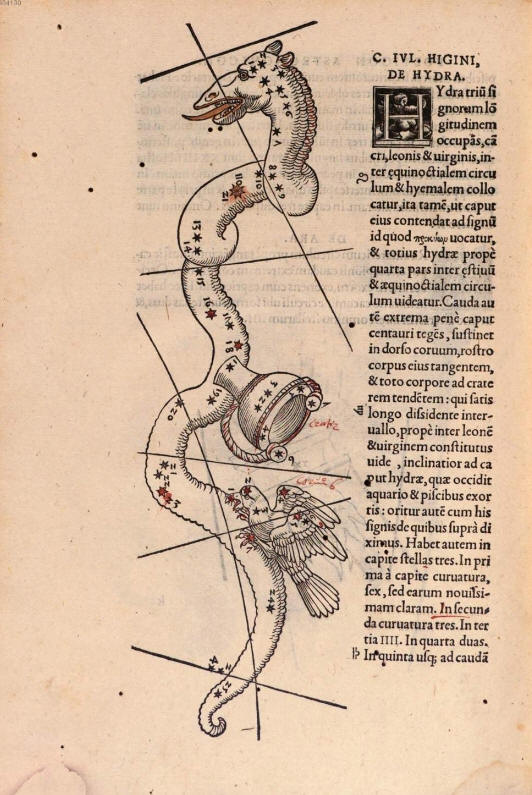

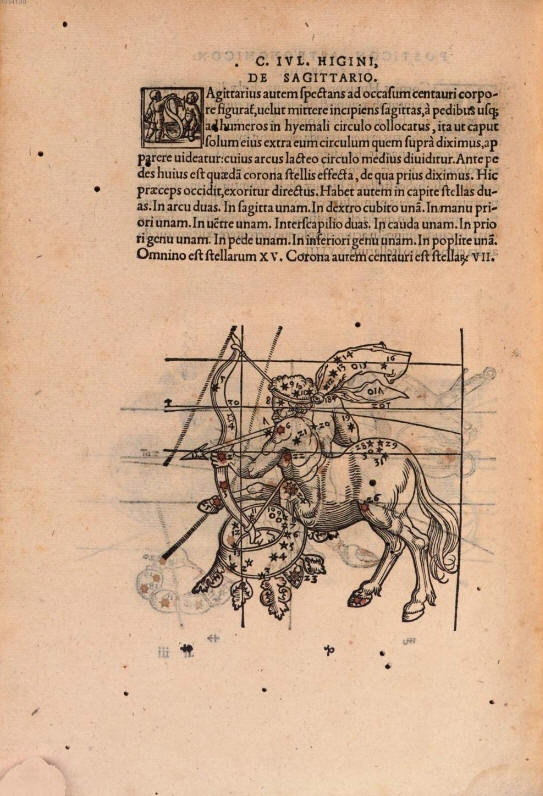

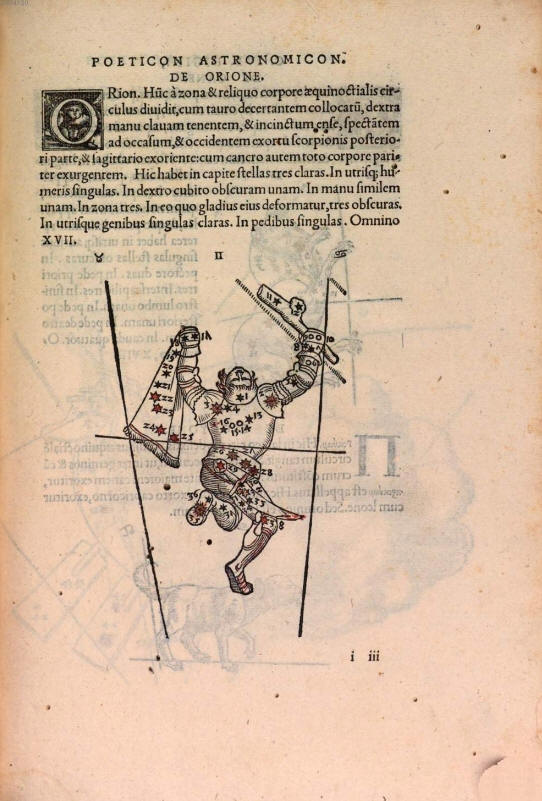

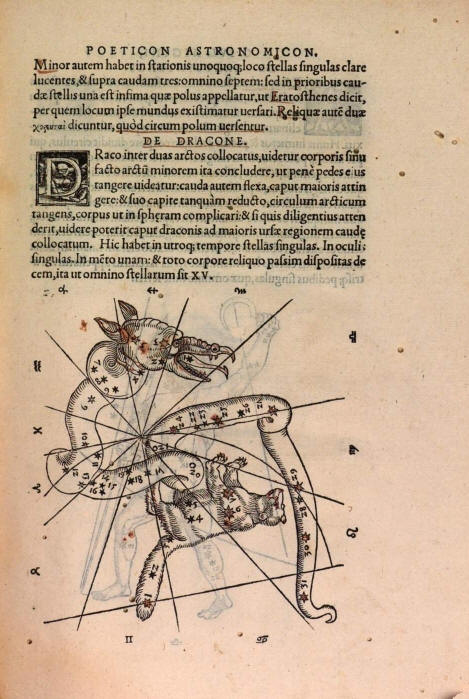

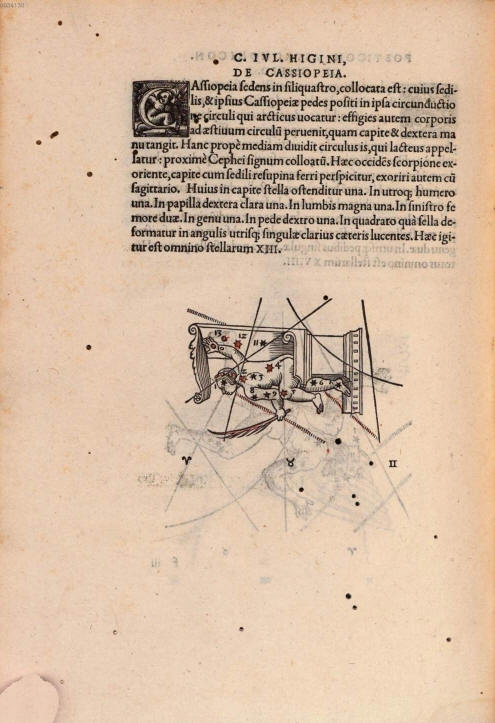

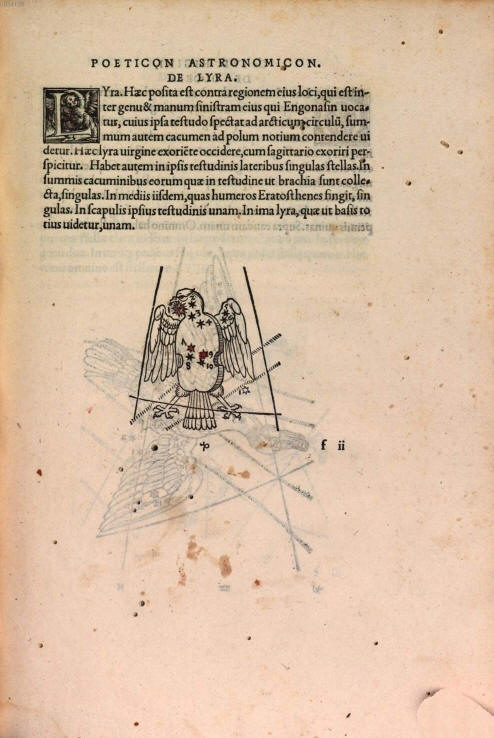

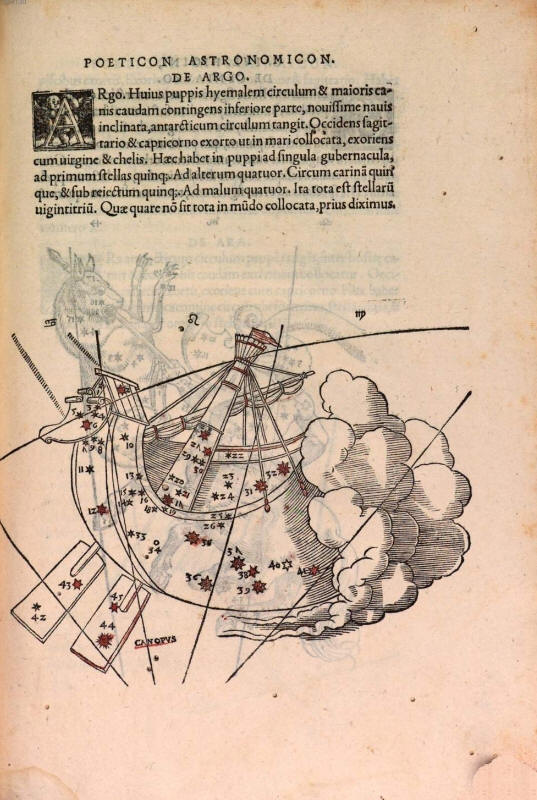

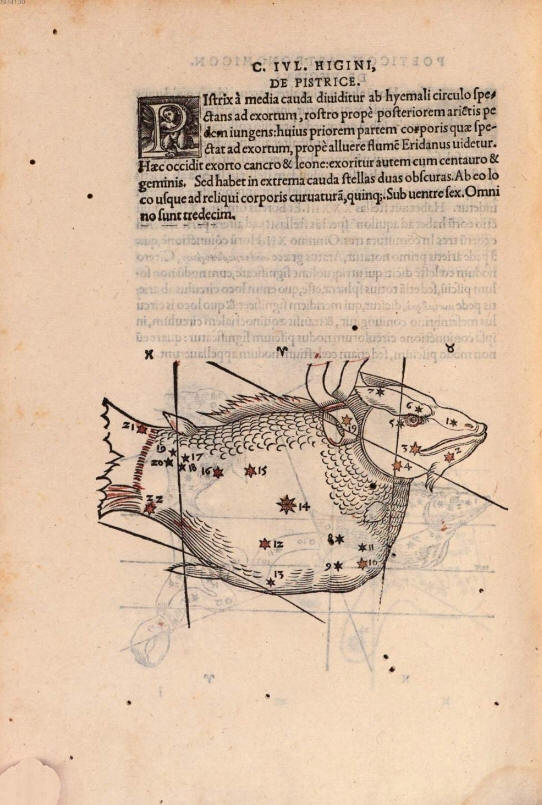

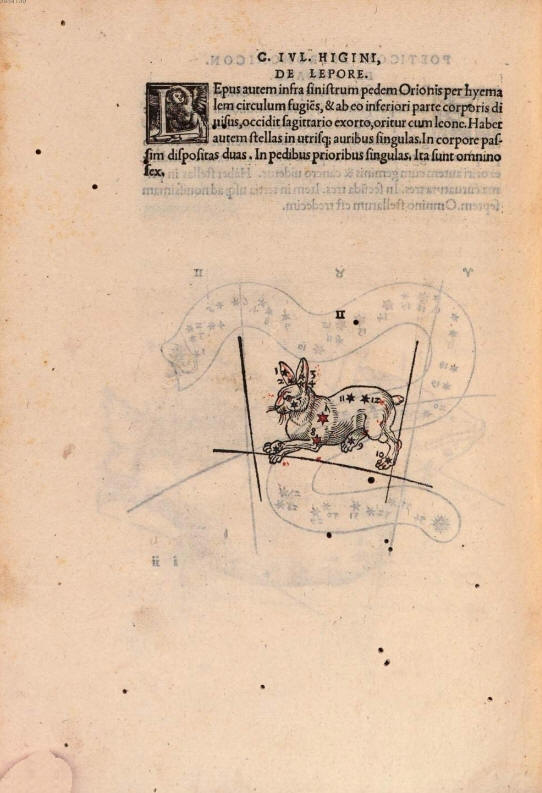

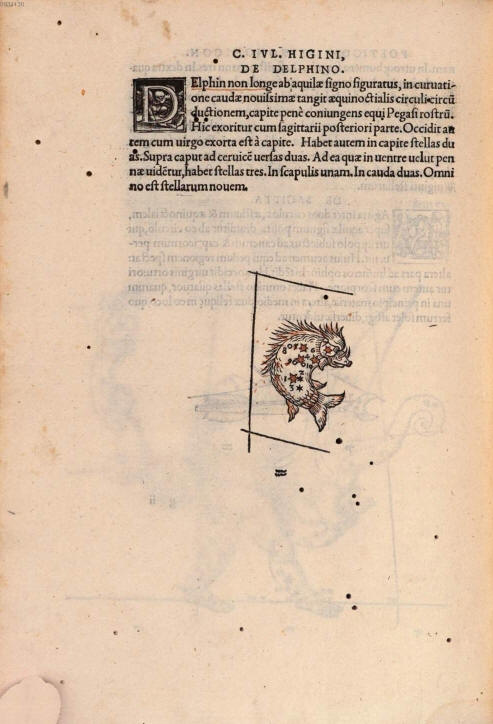

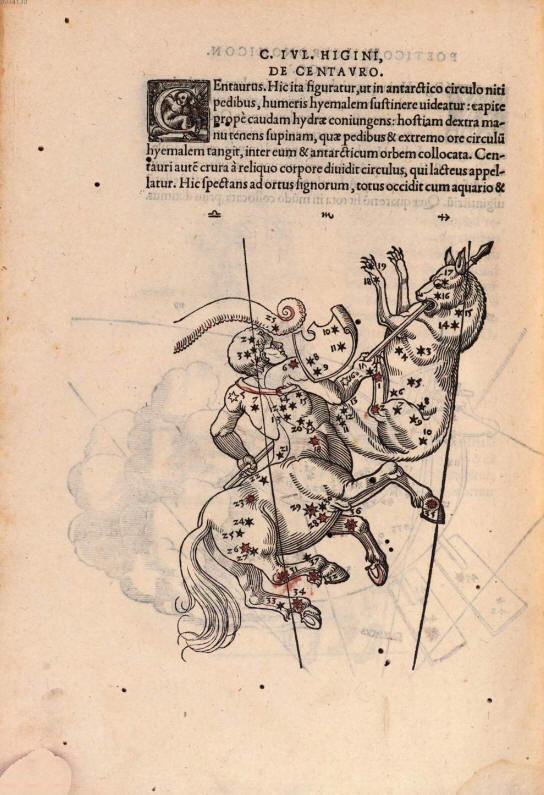

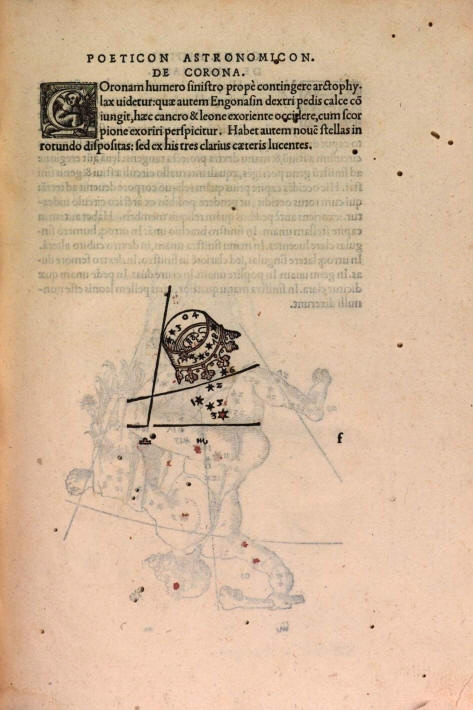

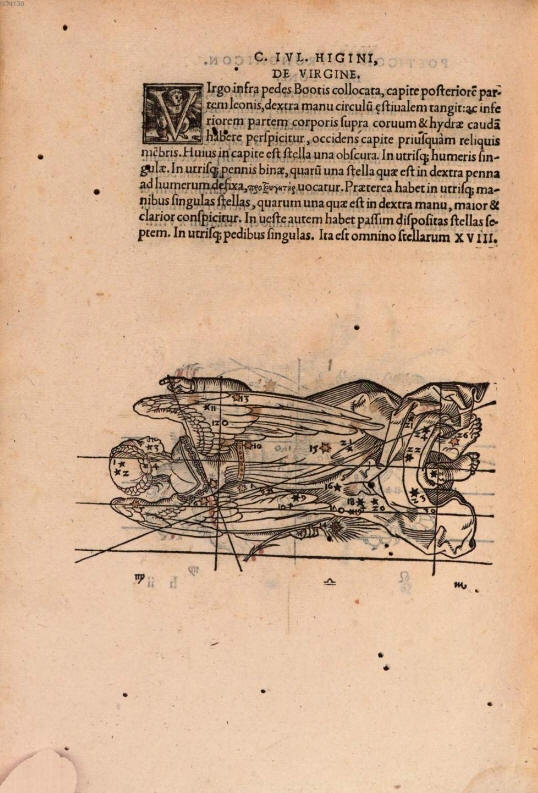

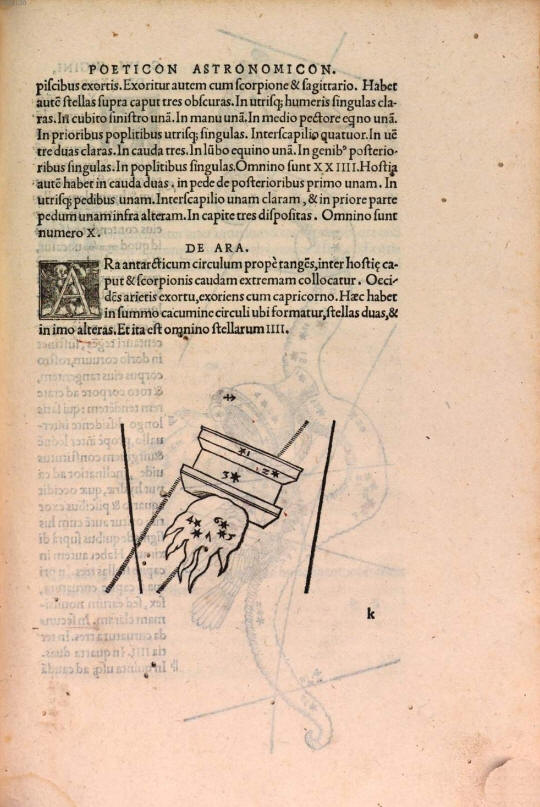

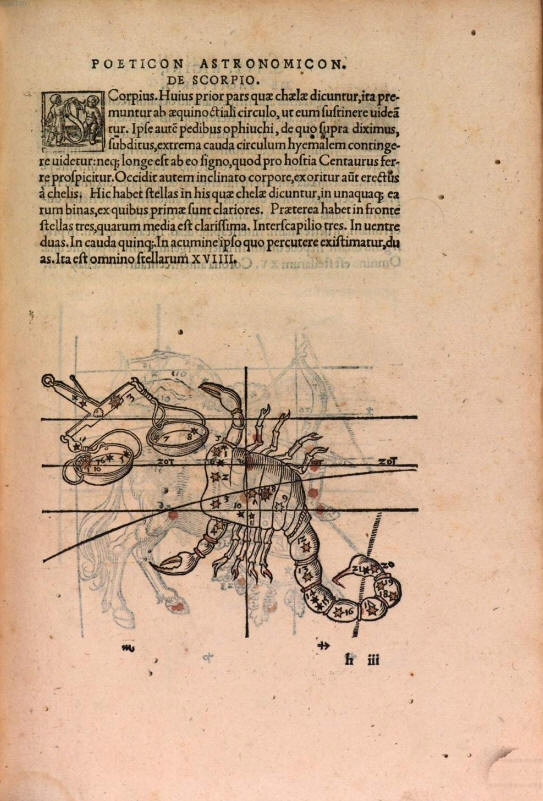

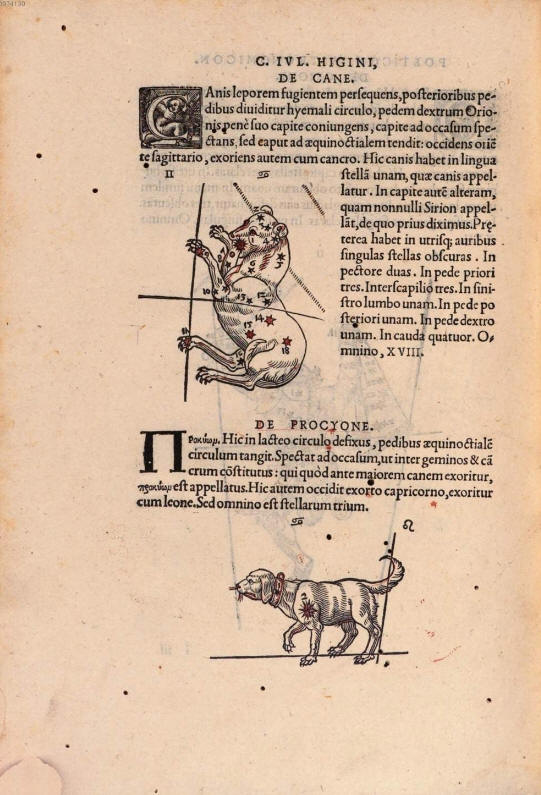

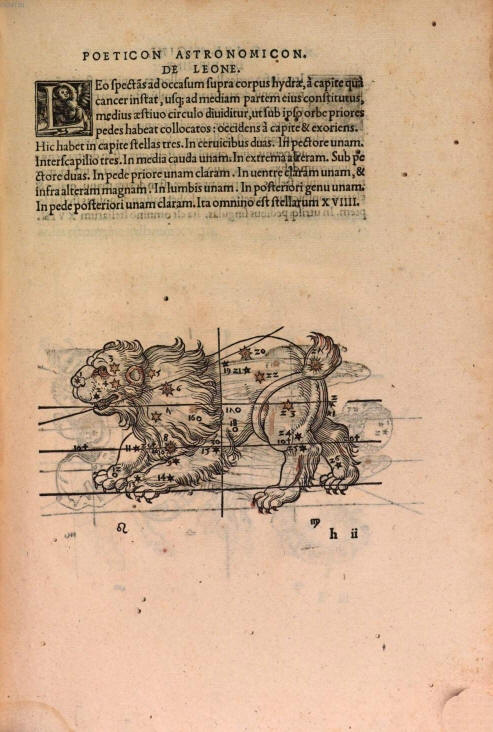

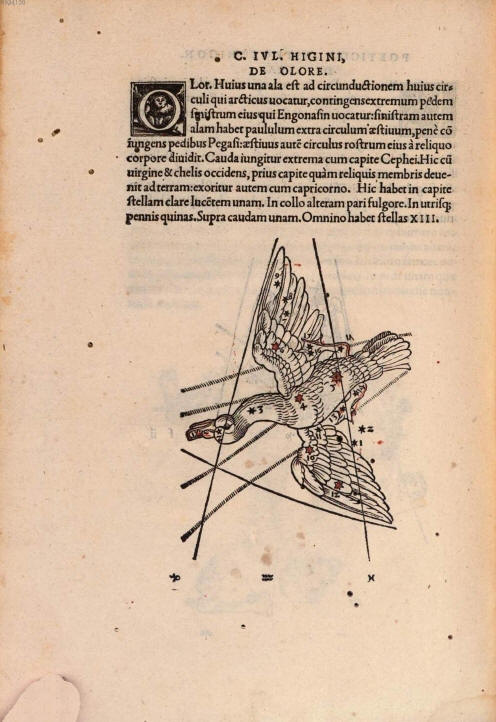

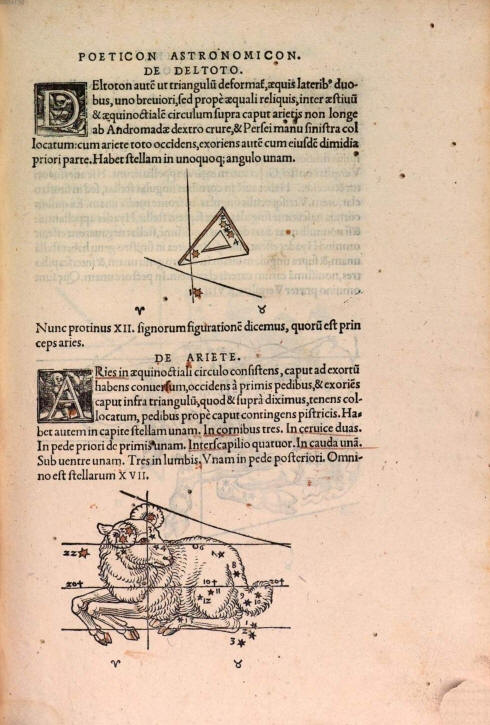

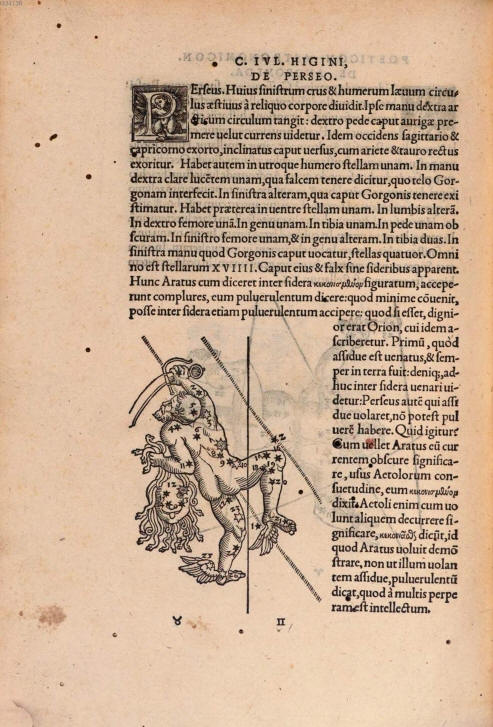

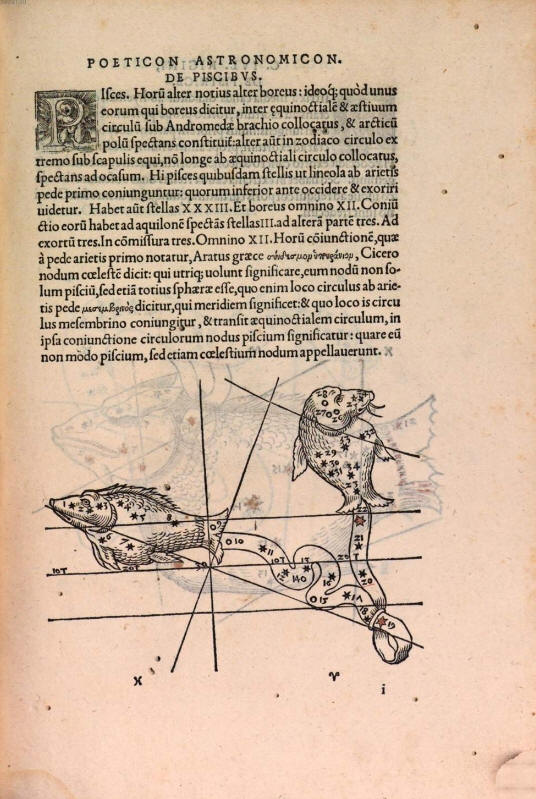

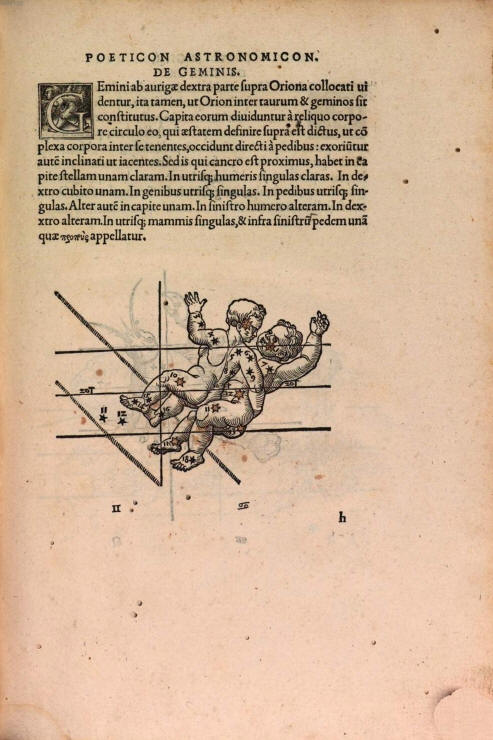

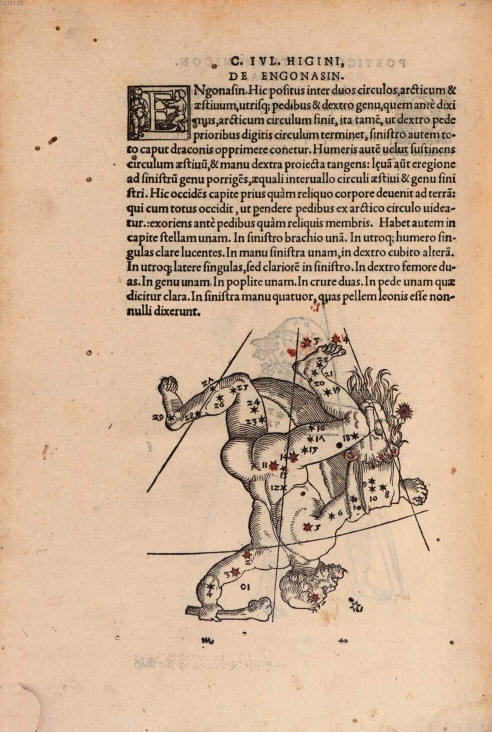

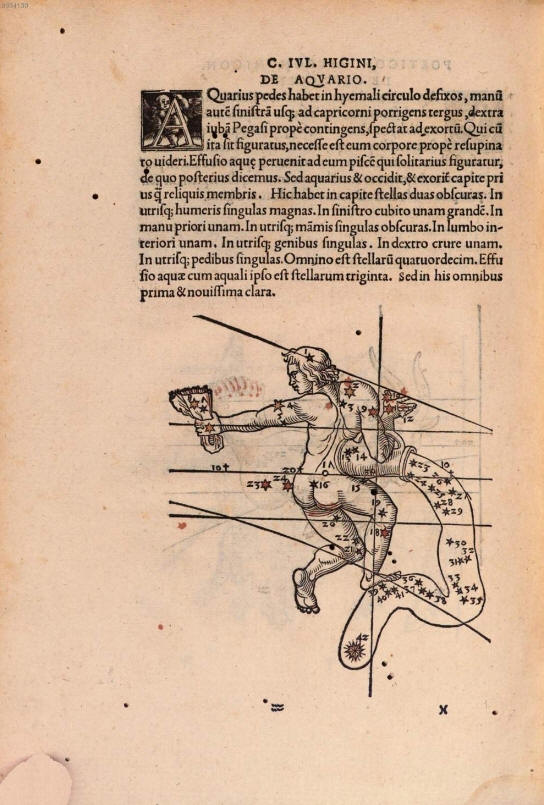

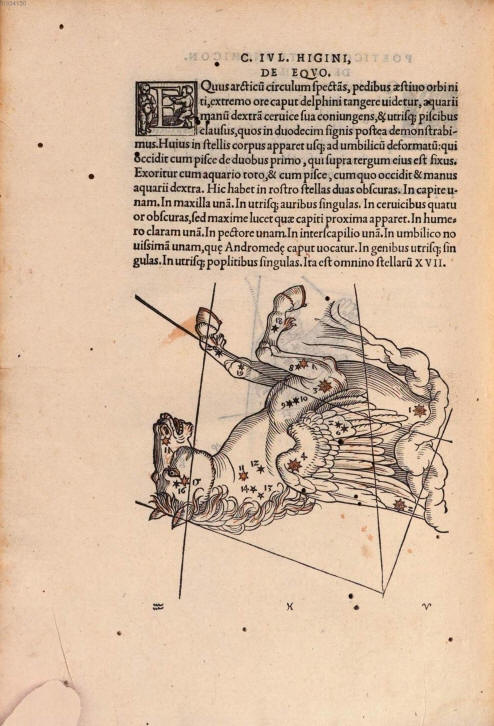

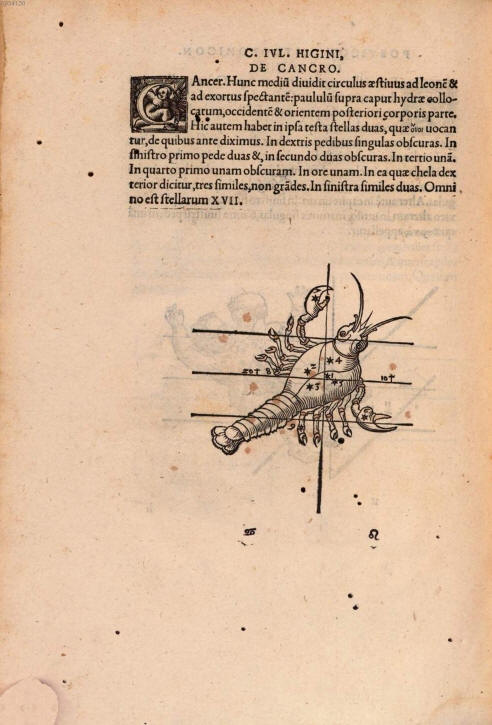

Le tavole delle costellazioni





https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00005.html?zoom=0.5



https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00046.html?zoom=0.5

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00047.html?zoom=0.5





https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00048.html?zoom=0.5

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00049.html?zoom=0.5





https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00050.html?zoom=0.5

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00051.html?zoom=0.5







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00052.html?zoom=0.5

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00053.html?zoom=0.5







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00054.html?zoom=0.5

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00055.html?zoom=0.5







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00056.html?zoom=0.5

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00057.html?zoom=0.5







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00058.html?zoom=0.5

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00059.html?zoom=0.5





https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00060.html?zoom=0.5

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00061.html?zoom=0.5



Nell’elenco delle costellazioni di Igino, come anche in Eratostene, non si fa cenno ad una delle 48 costellazioni tolemaiche, il Cavallino che pertanto non viene rappresentato





https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00062.html?zoom=0.5

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00063.html?zoom=0.5





https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00064.html?zoom=0.5

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00065.html?zoom=0.5







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00066.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00067.html







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00068.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00069.html







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00070.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00071.html









https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00072.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00073.html









https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00074.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00075.html







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00076.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00077.html







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00078.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00079.html







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00080.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00081.html







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00082.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00083.html

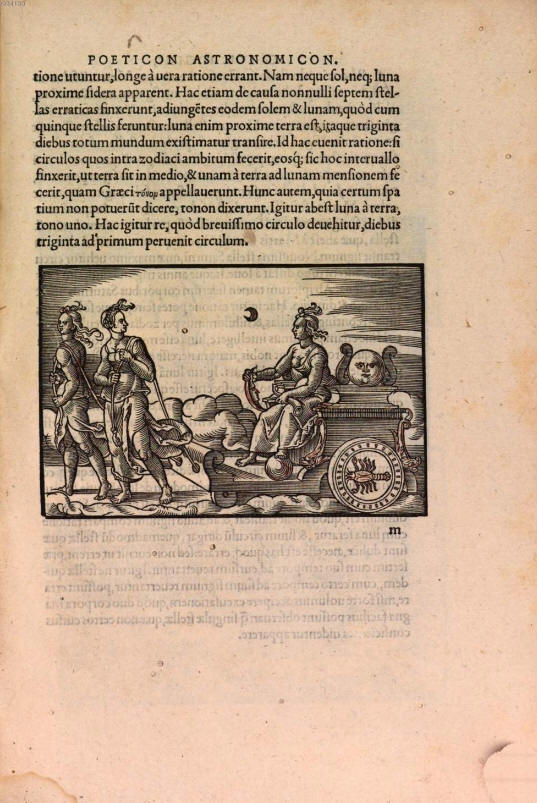

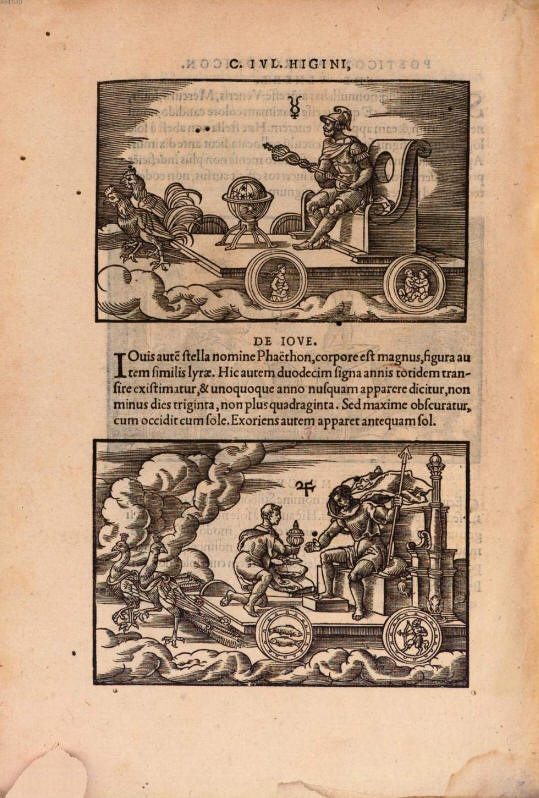

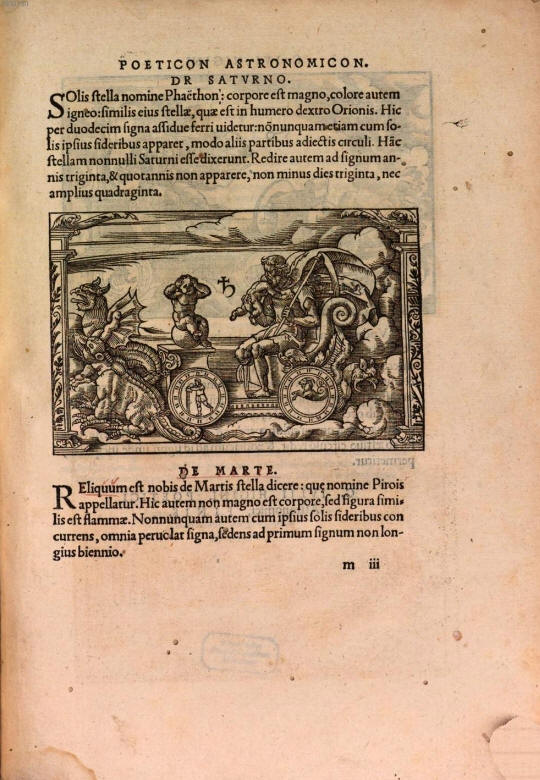

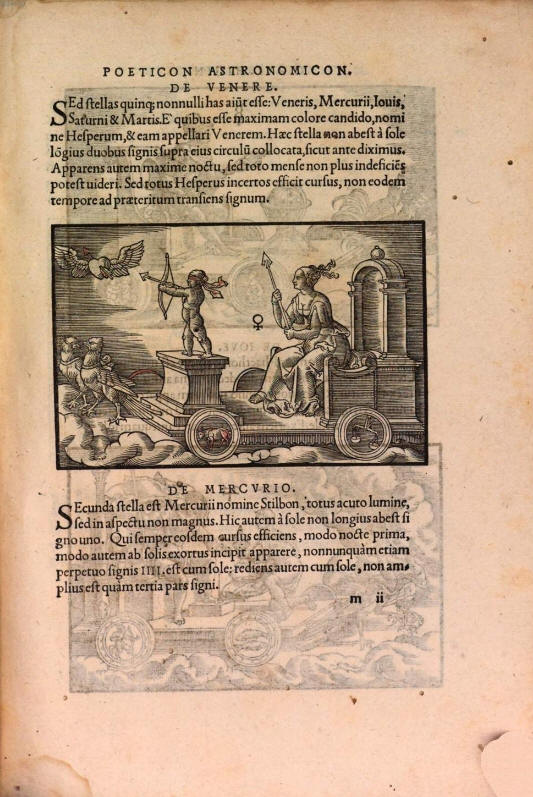

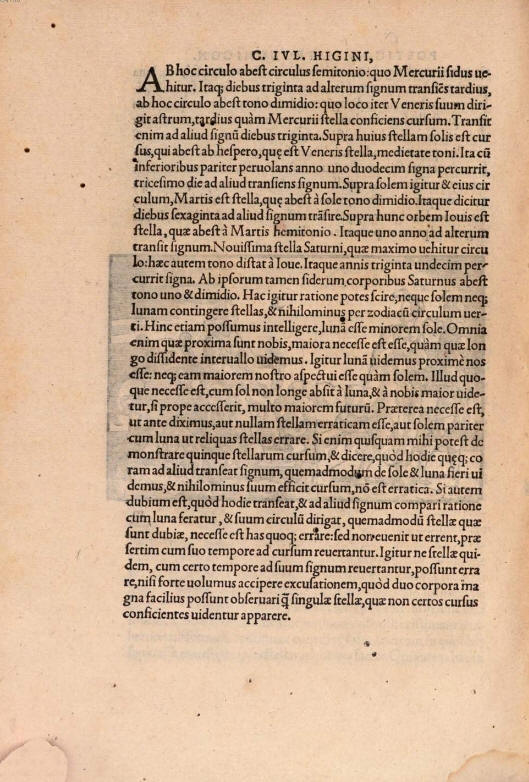

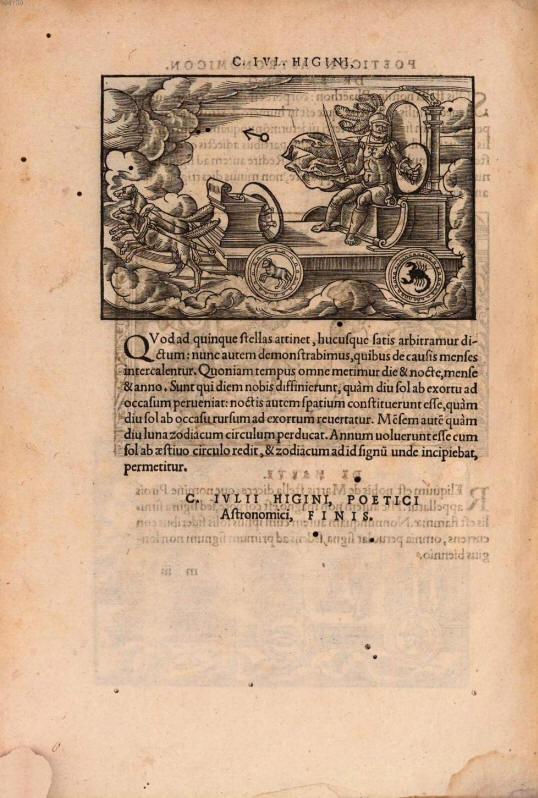

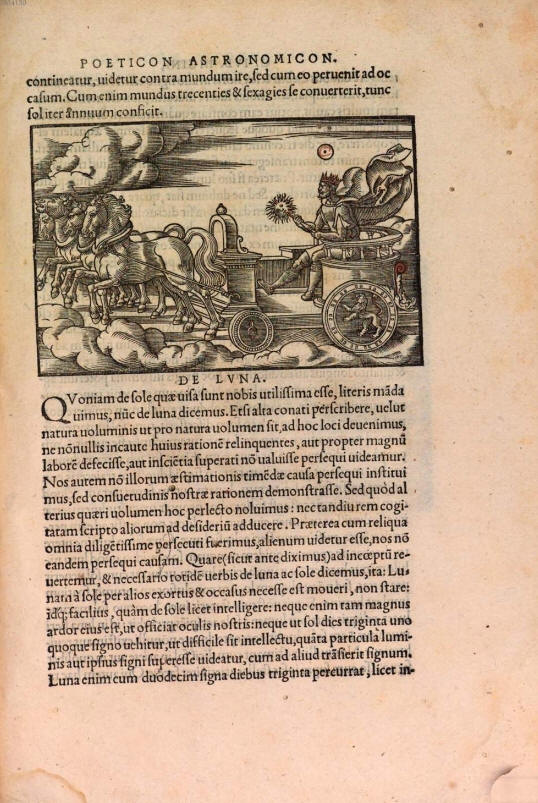

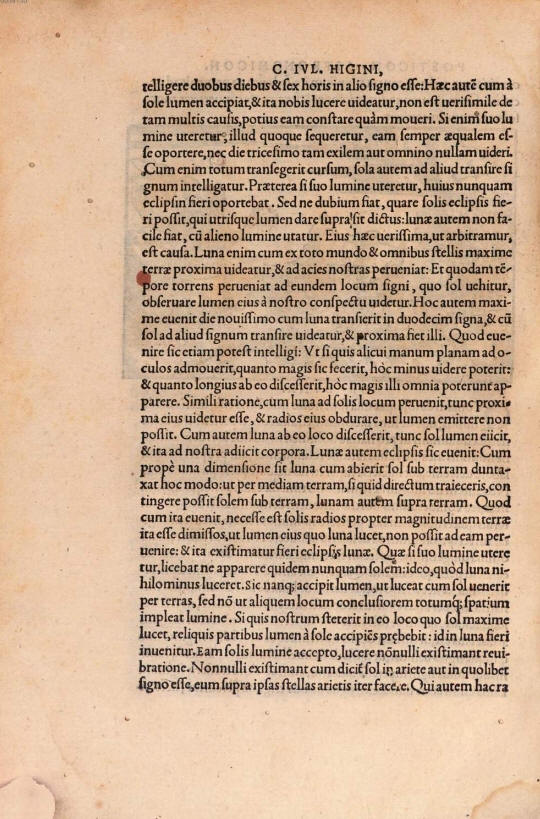

Le tavole dei pianeti



https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00095.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00096.html









https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00097.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00098.html







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00099.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00100.html







https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00101.html

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10934130_00102.html



Le stesse tavole sono inserite anche in una riedizione del 1739:

https://reader.digitale-sammlungen.de/de/fs1/object/display/bsb10195820_00001.html







Di Hyginus leggi anche:





Hyginus

Poeticon Astronomicon

 Arhard Ratdolt, Venezia 1485



http://www.atlascoelestis.com/Arh%20Pagina.htm







C. IULII

HYGINI

AUGUSTI LIBERTI

Poeticon Astronomicon, Basileae 1570



http://www.atlascoelestis.com/hi%20poeticon.htm









Leggi anche:

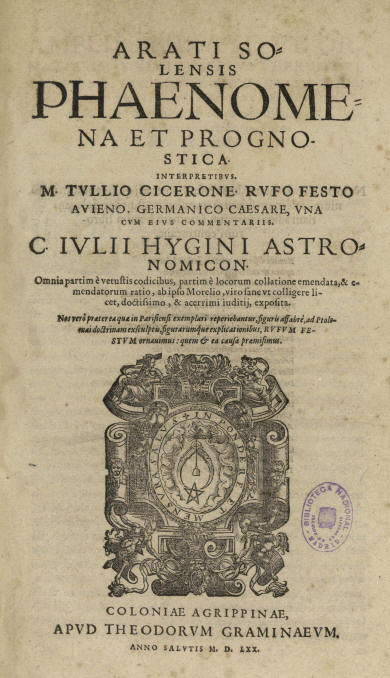

Arati Solensis


PHAENOMENA ET PROGNOSTICA. Interpretibus M. Tullio Cicerone, Rufo Festo Avieno, Germanico Caesare, Una cum Eius Commentariis.
C. Iulii Hygini Astronomicon ...




Coloniae Agrippinae (
 Colonia ): apud Theodorum Graminaeum, 1569 (1570)





http://www.atlascoelestis.com/Aratus%20Solensis.htm





Arnaud Zucker

(Université Côte d’Azur, CNRS, CEPAM, France)



Exploring the Relevance of the Star-positions in the Medieval Illuminated Manuscripts of Hyginus' De Astronomia, Venezia 2016-2017

in

http://www.atlascoelestis.com/Zuc%202016.htm

Exploring_the_Relevance_of_the_Star-posi.pdf














Bibliografia



Hyginus, Poeticon Astronomicon, Arhard Ratdolt, Venezia 1482



J. C. Schaubach, Eratosthenis Catasterismi cum interpretazione Latina et commento, Gottingen 1795



A . Rehm, Eratosthenis Catasterismorum Fragmenta Vaticana, Ansbach 1899  http://bvbm1.bib-bvb.de/view/action/singleViewer.do?dvs=1329042423074~125&locale=it&VIEWER_URL=/view/action/singleViewer.do?&DELIVERY_RULE_ID=35&frameId=1&usePid1=true&usePid2=true





J. Martin, Histoire du texte des Phènomènes d’Aratos, Parigi 1956 A .



Le Boeuffle, Astronomie, Les Belles Lettres, Paris 1983



Patrizio Domenicucci, Astra Caesarum, Astronomia, astrologia e catasterismo da Cesare a Domiziano, Edizioni ETS, Pisa, 1996



Theony Condos, Star Myths of the Greeks and Romans: A Sourcebook containing ‘The Constellations’ of Pseudo Eratosthenes and the ‘Poetic Astronomy’ of Hyginus, Phanes Press, Grand Rapids, 1997



Pascal Charvet, A. Zucker, J. P. Brunet, R. Nadal, Le Ciel, Mythes et histoire des constellations NiL editions, Paris, 1998



J. Pamias Massana, Eratostenes de Cirene, Catasterismes, Barcelona 2004



J. Pamias, K. Geus, Sternsagen, Utopica, Oberhaid, 2007



Arnaud Zucker, La function de l’image dans l’astronomie grecque in Eratosthène. Un atlète du savoir, Publications de l’Université deSaint-Etienne, Saint-Etienne, 2008



Anna Santoni, Eratostene, Epitome dei Catasterismi, Edizioni ETS, Pisa, 2009



G. Chiarini, G. Guidorizzi, Igino Mitologia Astrale, Adelphi, Milano 2009



Elly Dekker, Illustrating the PHAENOMENA, Celestial Cartography in Antiquity an the Middle Ages, Oxford University Press, Oxfor 2013



Anna Santoni,  Antiche stelle a Bisanzio, il codice Vaticano greco 1087, Edizioni della Normale, Pisa 2013



J. Pamias I Massana, Arnaud Zucker, Eratosthène de Cyrène, Catastérisme, Les Belles Lettres, Paris, 2013



A. Camerotto, Hybris, i limiti dell'uomo tra acque, cieli e terre, Mimesis edizioni 2014



A. Zucker, Exploring the Relevance of the Star-positions in the Medieval Illuminated Manuscripts of Hyginus' De Astronomia, Venezia 2016-2017 in Certissima Signa, A Venice Conference on Greek and Latin Astronomical Texts, Edizioni Ca’ Foscari-Venezia-settembre 2017















LEGGI DI

Arnaud ZUCKER

(U.N.S., Cepam UMR 6130)

Variabilité des images de constellations et fonction des images dans l’astronomie grecque : Eratosthène, Hipparque, Ptolémée

e

Exploring the Relevance of the Star-positions in the Medieval Illuminated Manuscripts of Hyginus' De Astronomia, Venezia 2016-2017 in Certissima Signa, A Venice Conference on Greek and Latin Astronomical Texts, Edizioni Ca’ Foscari-Venezia-settembre 2017

http://www.atlascoelestis.com/Zuc%202016.htm







CONFRONTA CON





Codice NLW 735C

 f. 10v





Johann Conrad Schaubach

Eratosthenis Catasterismi cum interpretatione latina et commentario

Gottingae 1795







Aratus Solensis


PHAENOMENA ET PROGNOSTICA



Interpretibus M. Tullio Cicerone, Rufo Festo Avieno, Germanico Caesare, Una cum Eius Commentariis. C. Iulii Hygini Astronomicon...

Coloniae Agrippinae ( Cologne ) : apud Theodorum Graminaeum, 1569 (1570)









Hyginus

 Poeticon Astronomicon, Basileae 1570





Hugo Grotius

Syntagma arateorumLeiden 1600



Hyginus

in





Altre rappresentazioni dell'Aratea o di Igino



Diversi Cycles





Altri lavori di Vopel in Atlascoelestis:



Caspar Vopel



GLOBUS VON VOPELIUS, KÖLNNISCHES STADT-MUSEUM: KSM 1984/447

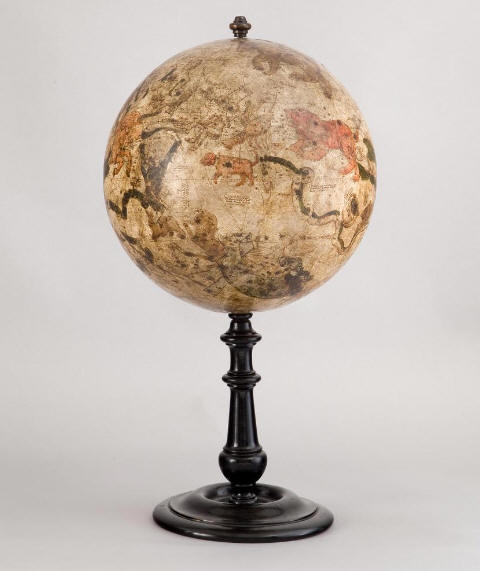

A Manuscript Celestial Globe, 1532





http://www.atlascoelestis.com/Vopel%201532.htm

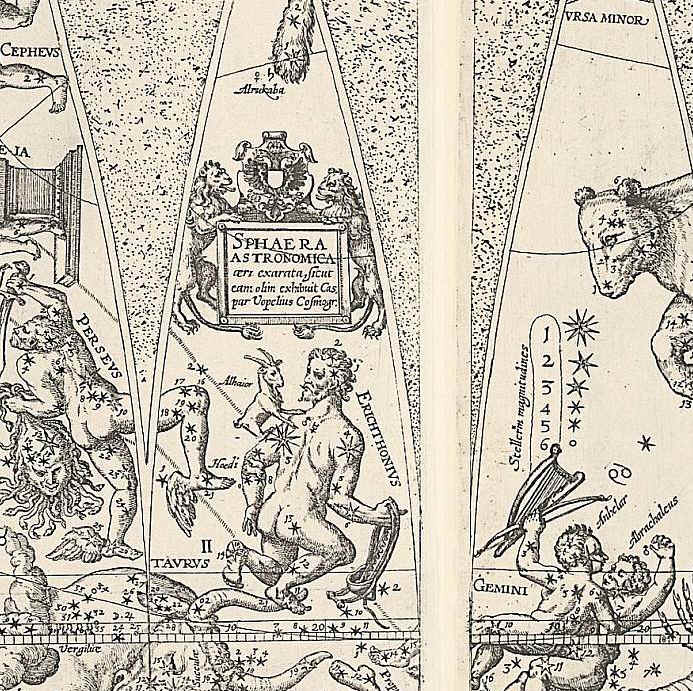

SPHAERA / ASTRONOMICA / aeri exarata, sicut / eam olim exhibuit Cas/par Vopelius Cosmogr.

quasi copia di

Caspar Vopel, Caspar. VO / PEL. MEDEBACH / HANC. COSMOGRA: / sphæram faciebat. / Coloniae. UN. 1536

http://www.atlascoelestis.com/Anonimo%20vopel%201536%20base.htm















www.atlascoelestis.com

di  FELICE STOPPA

AGOSTO 2019
